If your old furnace is wheezing its last breath or you’re building a home without natural gas access, you’re likely considering an electric furnace. They’re a clean, straightforward heating solution, but the words “furnace installation” can sound daunting. This guide will walk you through everything—from how it works to what the installation truly entails. I’ll be honest: while I’ll explain the process in detail, this is one home project where calling a pro isn’t just a suggestion; it’s a requirement for safety and performance.
How an Electric Furnace Works: The “Giant Hair Dryer” Analogy

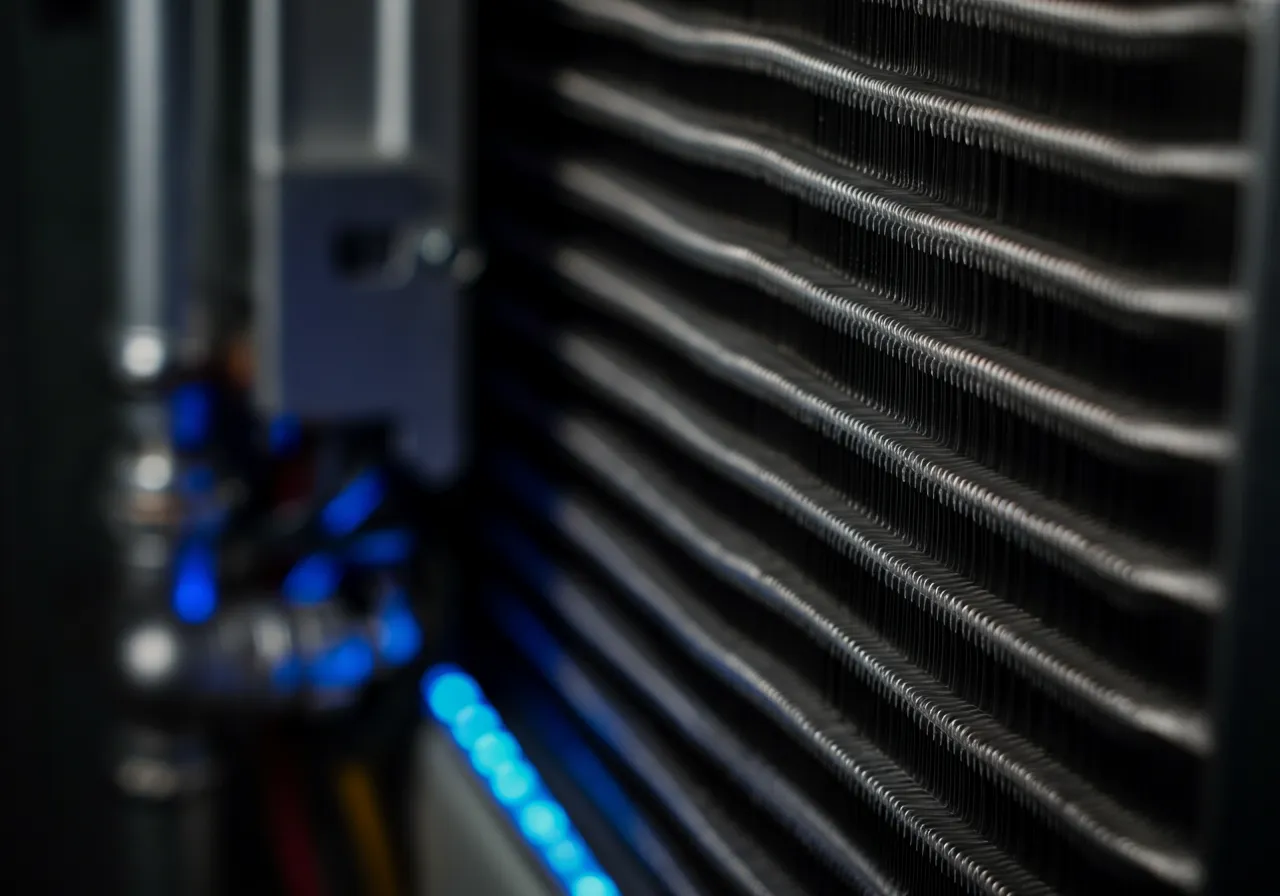

Think of an electric furnace like a sophisticated, whole-house hair dryer. Instead of a small coil and fan, it uses a series of heavy-duty electrical elements, much like the coils inside a toaster. When your thermostat calls for heat, relays send high-voltage electricity to these elements, causing them to glow red-hot. A powerful blower fan then pushes air from your home’s return ducts across these scorching elements. The air heats up instantly and is forced through your supply ductwork to warm your rooms. It’s simple, direct, and has far fewer moving parts than a gas furnace.
Critical Safety Disclaimer: Stop Here Before You Proceed
Electric furnace installation is NOT a DIY project. This involves working with 240-volt high-amperage electrical circuits, which can cause severe injury, fire, or death if handled incorrectly. It also requires knowledge of local electrical codes (NEC), mechanical codes, and proper ductwork sizing. The following guide is for informational purposes only to help you understand the process and communicate effectively with your HVAC technician. Always hire a licensed, insured, and certified HVAC professional for any installation or major service.
Why Choose an Electric Heating System?
Electric furnaces are a perfect fit for certain homes. Here’s where they shine:
- No Gas Line Available: The primary reason. If running a natural gas line is impractical or too expensive, an electric forced air furnace is your go-to.
- Safety: No combustion means no risk of carbon monoxide leaks, gas line issues, or pilot lights.
- Lower Upfront Cost: The unit itself is typically less expensive to purchase than a comparable gas or oil furnace.
- Simpler Venting: No need for flue pipes or chimney venting, simplifying the installation location.
The main trade-off is operational cost. Electricity is often more expensive per unit of heat than natural gas, so your monthly bills may be higher, especially in very cold climates.
The Professional Installation Process: A Step-by-Step Overview
When you hire a qualified technician, here’s what a proper electric furnace installation looks like. This ensures efficiency, safety, and longevity.
1. Pre-Installation Assessment & Sizing
This is the most critical step. A pro will perform a Manual J Load Calculation. This isn’t a guess; it’s a math-based analysis of your home’s heat loss based on insulation, windows, square footage, and climate. Installing an incorrectly sized unit leads to short cycling, discomfort, and high energy bills.
2. Removing the Old Unit & Preparing the Site
The old furnace is safely disconnected from power and ductwork. The new location (often a utility closet, basement, or attic) is cleared and checked for a sturdy, level platform and adequate clearance for service.
3. Installing the New Electric Furnace Cabinet
The new unit is positioned. The technician ensures it’s perfectly level to prevent stress on the cabinet and ensure proper drainage if it has a built-in humidifier or other accessories.
4. Electrical Connection – The High-Voltage Work
A dedicated double-pole circuit breaker (typically 60-100 amps) is installed in your main electrical panel by a qualified electrician, often part of the HVAC team. Heavy-gauge wire (like 6-gauge or 8-gauge copper) is run in conduit to the furnace. The connections at the furnace’s disconnect switch and internal terminal block are made precisely and securely.
5. Ductwork Integration
The existing supply and return plenums are connected to the new furnace with new transitions and sealed airtight with mastic or metal-backed tape—never duct tape! This prevents energy loss.
6. Thermostat & Control Wiring
The low-voltage thermostat wires (usually 18-gauge) are connected from the furnace control board to your new thermostat, ensuring proper communication for the heating cycle.
7. System Startup & Commissioning
The technician will power up the system, test each heating element’s operation, verify correct airflow (CFM), check safety limits, and calibrate the thermostat. They’ll also explain the basic operation and maintenance to you.
Electric Furnace vs. Heat Pump: A Quick Comparison
| Feature | Electric Furnace | Air Source Heat Pump |
|---|---|---|
| How it Creates Heat | Directly converts electricity to heat (like a toaster). | Moves existing heat from outside air into your home (like a reversible AC). |
| Efficiency | Nearly 100% AFUE (all electricity becomes heat). | 200-300%+ efficient (moves more heat energy than it consumes). |
| Operating Cost | Higher in cold climates. | Significantly lower in moderate climates. |
| Best For | Very cold climates (as backup heat), areas with cheap electricity, or no gas. | Mild to moderate climates as primary heat. Often paired with an electric furnace as a “dual-fuel” backup. |
| Cooling Ability | None (requires separate AC). | Yes (provides both heating and cooling). |
Essential Maintenance for Longevity
Once installed, keep your system running smoothly with these simple habits:
- Filter Changes: This is #1. Check 1″ filters monthly; change every 1-3 months. A clogged filter strains the blower and can overheat the elements.
- Annual Inspection: Have a pro check the heating elements, sequencers, blower motor, and electrical connections once a year before heating season.
- Keep It Clear: Ensure all vents and returns are unblocked and keep the area around the furnace cabinet clean and free of storage.
Frequently Asked Questions (FAQ)
How long does an electric furnace last?
With proper maintenance, a quality electric residential furnace can last 20-25 years. Its simpler design has fewer major components to fail compared to gas models.
Can I install an electric furnace myself to save money?
Absolutely not. The risks of electrocution, fire, and creating an unsafe or inefficient system are far too high. Improper installation can also void the manufacturer’s warranty. The cost of fixing a DIY mistake will far exceed the cost of professional installation. For a detailed look at the complexities, the Air-Conditioning, Heating, and Refrigeration Institute (AHRI) provides resources on proper system selection and installation standards.
My electric furnace is blowing cold air. What’s wrong?
Start with the simplest fix: check and replace the air filter. If that’s not it, a tripped circuit breaker, faulty sequencer (which stages the heating elements), or a broken heating element could be the cause. Due to the high-voltage components, diagnosis and repair should be left to a technician.
Final Thoughts
An electric furnace is a reliable, safe, and effective heating solution, especially where natural gas isn’t an option. The key to a successful installation lies in professional sizing, expert electrical work, and meticulous duct sealing. By understanding the process, you can be an informed partner to your HVAC contractor, ensuring you get a system that delivers cozy, efficient warmth for decades to come. Your first and most important step? Finding that trusted, licensed pro.
